What Happened
On the morning of June 11, 2009, a Robinson R22 Beta helicopter, N149SH, lifted off from a ranch near Morristown, Arizona, about 30 nautical miles northwest of Phoenix. The pilot, a 61-year-old commercial certificated rotorcraft pilot with 3,200 total flight hours, had been hired to do what he’d done before: herd cattle across rugged desert terrain. He’d worked this same ranch the day before, flying three sorties between 0900 and 1700. He knew the land. He’d spent the night at the ranch owner’s home, had dinner with him, and was back in the cockpit by approximately 0730.
The terrain around Morristown sits at about 2,300 feet elevation. Sparse desert brush ran 6 to 14 feet high across most of the ground, broken up by Saguaro cactus reaching as tall as 50 feet. Power transmission lines ran through the area. The calculated density altitude that morning, using the nearest weather station at Deer Valley Airport roughly 25 nautical miles to the southeast, came out to 4,304 feet. The R22 Beta is a light, nimble machine, but it’s designed with low rotor inertia by comparison to larger helicopters. It rewards pilots who stay ahead of it. At low altitude over broken terrain, working cattle, the task demands constant attention to the ground environment.
At about 1000 mountain standard time, two witnesses who lived near the accident site heard the helicopter working in the area. Its engine sounded normal to both of them. One had been listening to it for a while. Then came a loud boom. The power went out at his house at the same moment. There was a hill between his residence and the accident site, so he couldn’t see anything. He drove toward the sound and found the helicopter on the ground. The second witness heard a loud bang she described as sounding like a shotgun going off. Then she heard the engine sputter a couple of times. Then it was quiet. She drove to the scene and found the helicopter lying on its right side with a downed power transmission wire nearby.
The ranch owner never heard the accident. He had not seen the pilot depart for the accident flight and received no distress call. The pilot was the sole occupant. He did not survive.
Investigation Findings

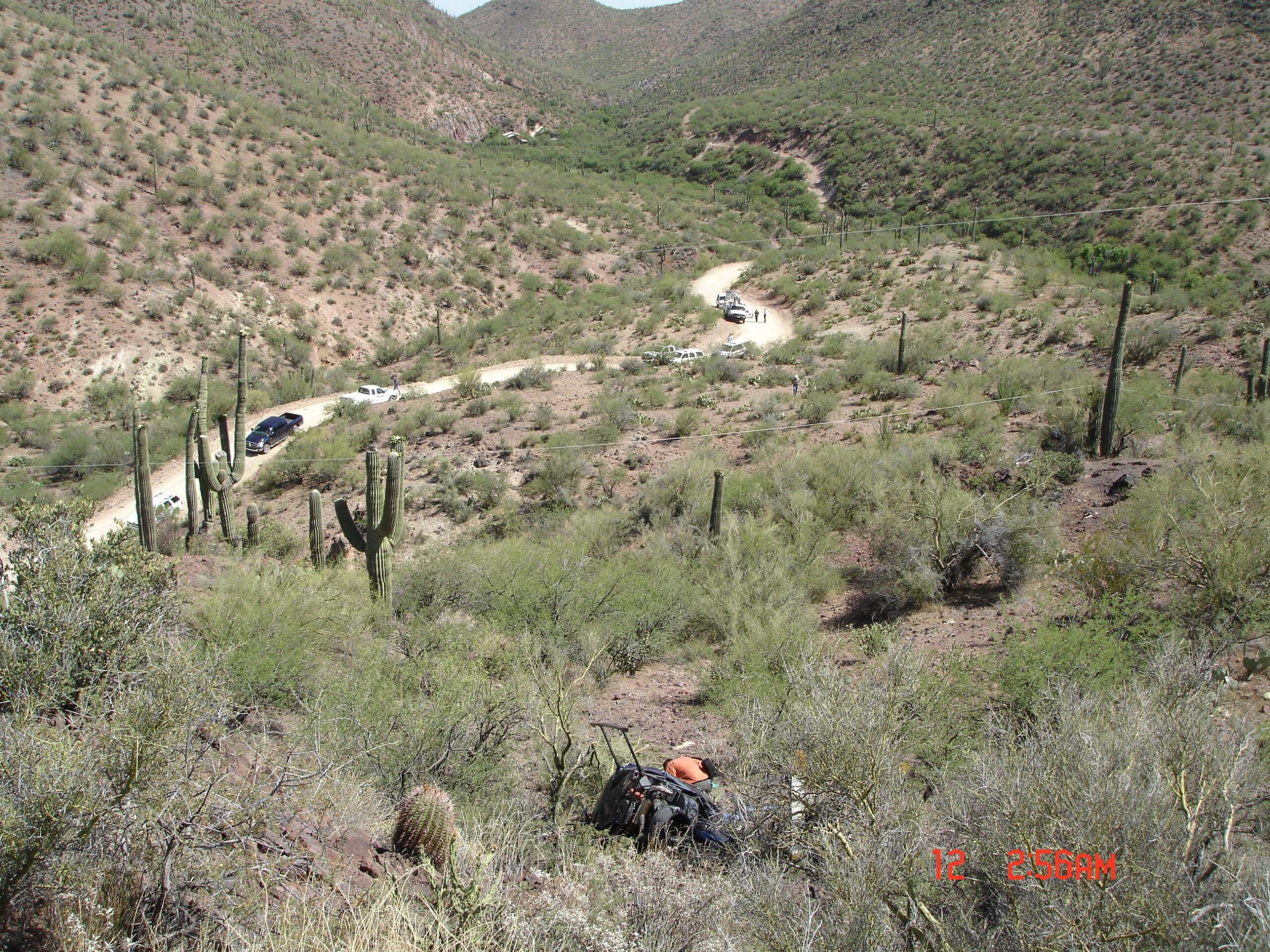

FAA inspectors and NTSB investigators worked the wreckage carefully. The helicopter had come to rest on its right side in rugged, mountainous terrain. Both windshields were shattered. The right fuselage was crushed. The aft tail boom had separated from the fuselage and broken into three pieces. The tail cone and tail rotor blades were found about 75 feet from the main fuselage. Both main rotor blades showed impact damage along their leading and trailing edges, and both were bent downward 20 to 25 degrees near the root. One blade had an additional 80-degree bend about 4 feet from its tip. One blade carried blue paint transfer marks matching the fuselage color. The other had red transfer marks consistent with the “Danger” decal on the tail cone — both signatures indicating the main rotor struck the tail boom before or during the ground impact sequence.
The wire strike evidence told a clear story. A row of evenly spaced marks, each 2 to 4 inches long with approximately 1-inch spacing, ran along the left side of the nose and chin, starting at the lower windshield retainer and continuing down to the top of the forward left landing gear strut. The leading edge of the left landing gear strut had its own contact marks. The left skid tube was scuffed on its upper surface forward of the forward strut. The pattern was consistent with the helicopter pivoting nose-down around the wire after striking it — the wire rolling back across the chin and down the left skid as the nose pitched forward into the ground. On July 2, 2009, investigators examined the engine at a Phoenix salvage yard. The engine rotated freely by hand. All four cylinders had good compression. The engine was started and ran. Oil pressure came up to 55 psi. The Robinson company investigator noted score marks on approximately 90 degrees of the aft face of the upper sheave and a scuff mark on the clutch actuator. His assessment: these were signatures indicating the engine was not rotating at the moment of impact. The main rotor blades had struck the tail boom first, arresting rotor momentum before the helicopter hit the ground.
Toxicology results from the FAA Civil Aeromedical Institute revealed two substances in the pilot’s pleural blood: 0.984 ug/ml methylphenidate and a combined venlafaxine and desmethylvenlafaxine presence of 0.633 and 2.344 ug/ml respectively. Methylphenidate is the stimulant sold under the brand name Ritalin. Venlafaxine is the antidepressant sold as Effexor, and desmethylvenlafaxine is its primary metabolite. Neither medication is typically approved for flight operations by the FAA. The pilot’s medical history added context. Back in 2005, his initial medical application had disclosed methylphenidate use for what his psychiatrist described as mild inattentiveness. The FAA had issued him a certificate in May 2006 with an explicit notation: operation of aircraft is prohibited any time medication and/or treatment are required. His April 22, 2009 medical application — issued less than two months before the accident — listed no medical conditions and no medications.
NTSB Probable Cause
The pilot’s failure to maintain clearance from the power line.
Safety Lessons
Low-altitude operations over terrain demand a different kind of scanning discipline than cruise flight. Add a task like herding cattle, and the workload compresses fast. This accident points to a specific set of risks that pilots can manage with deliberate preflight and in-flight practices.
- Know the wire environment before you fly it. Power lines in rural terrain are often unmarked on sectional charts. In Arizona desert country, transmission lines run through valleys, across ridgelines, and along fence lines — all of it at or below the altitudes a herding pilot needs to work. A ground survey of the area, or at minimum a careful review of satellite imagery and coordination with ranch staff who know where the lines run, is part of the job. The R22’s wire strike marks began at the lower windshield — meaning the helicopter flew into the wire at close to eye level or below. At the speeds and altitudes involved in cattle herding, a wire spotted at 100 feet is already inside the margin for a clean avoidance maneuver.
- Understand what the R22’s low rotor inertia means at low altitude. The Robinson R22 is designed with relatively low inertial energy stored in the main rotor blades compared to heavier helicopters. The Robinson company investigator’s comments at the wreckage examination reinforced this: when the main blades struck the tail boom, the engine was no longer rotating at impact. The R22 Pilot’s Operating Handbook and Robinson’s safety course both address the implications for autorotation entry. At altitudes below 100 feet over terrain, the margin to establish a successful autorotation is narrow. A sudden loss of lift following a wire strike at low altitude leaves almost nothing to work with.
- Medical self-certification is not a formality. The pilot’s 2009 medical application disclosed neither the antidepressant nor the stimulant detected in his toxicology. The FAA had been explicit in writing: if medication was required, flying was prohibited. The NTSB acknowledged that the role of the medications in the accident could not be definitively established. But the pilot was operating two substances not approved for flight, under a certificate that depended on his honest disclosure, while conducting a high-workload, low-altitude task in terrain with known hazards. The medical certificate is not a bureaucratic obstacle. It is the mechanism by which a pilot confirms, to themselves and to the system, that they are fit to fly.
Frequently Asked Questions
Q: What caused the Robinson R22 to crash near Morristown, Arizona in 2009?
A: The helicopter struck a power transmission line during low-altitude cattle herding operations. The wire strike caused the helicopter to pivot nose-down and descend uncontrolled to the ground. The NTSB determined the probable cause was the pilot’s failure to maintain clearance from the power line.
Q: Were the pilot’s medications a factor in the R22 wire strike accident?
A: Toxicology found methylphenidate (Ritalin) and venlafaxine (Effexor) in the pilot’s system. Neither is typically approved for flight operations by the FAA, and the pilot had been specifically notified in writing that he was prohibited from flying while requiring medication. However, the NTSB stated that the role of the medications in the accident could not be definitively established. The undisclosed medication use on the medical application was a separate regulatory violation regardless of its role in the crash.
Q: How do wire strikes typically happen during low-altitude helicopter operations?
A: Wire strikes at low altitude are most common during task-focused operations where the pilot’s attention is directed at the ground-level objective rather than the surrounding environment. Agricultural, mustering, and utility patrol flights all carry elevated wire strike risk. Power lines in rural areas frequently go unmarked on aeronautical charts. Wire detection equipment exists but is not required or commonly installed in light helicopters like the R22. Pilots operating at low altitude in wire-dense terrain are advised to survey the area before flight and maintain a mental map of wire locations throughout the mission.
Q: What are the autorotation limitations of the Robinson R22 at low altitude?
A: The R22 has lower rotor inertia than many other helicopters, which means the main rotor blade RPM decays more quickly after power loss. Robinson Helicopter Company teaches this extensively in its safety course and POH guidance. Below approximately 100 feet AGL at low forward speed, the available energy to execute a successful autorotation is severely limited. This is why the R22 height-velocity diagram (the “dead man’s curve”) defines relatively large avoid regions for low-altitude, low-speed flight. Wire strike accidents in this flight regime typically leave no margin for autorotative recovery.
Q: What does the R22 wire strike wreckage evidence reveal about how the impact occurred?
A: The wreckage examination found evenly spaced wire contact marks running from the lower windshield retainer down the left side of the nose and chin to the top of the forward left landing gear strut, with additional scuffing on the left skid. This pattern is consistent with the helicopter flying into the wire and then pivoting nose-down around it, with the wire rolling back across the left skid as the nose dropped. One main rotor blade had red transfer marks matching the tail cone decal, and the other had blue marks matching the fuselage — indicating the rotor struck the tail boom before ground impact, which also explains the investigator’s finding that the engine had stopped rotating by the time the helicopter hit the ground.
